Meeniyan Project
Residential: Single Dwelling
Passivhaus Plus Certification
Meeniyan, VIC, 2023
This is single-storey, four-bedroom home was completed in 2023. The clients deliberately chose North South Homes for their expertise with the Passivhaus Standard. They were in a situation where they were unable to achieve the level of detail and performance needed for airtightness and insulation. The project became a design-and-build process guided by PHPP science-backed modelling.
-
AIRTIGHTNESS n50 ACH@50pascals: 0.32
HEATING DEMAND (kWh/m².yr): 17
COOLING DEMAND (kWh/m².yr): 3
HEATING LOAD (W/m²): 7
COOLING LOAD (W/m²): 8
PRIMARY ENERGY DEMAND (PE) (kWh/m².yr): 70
PRIMARY ENERGY RENEWABLE DEMAND (PER): 32
PRIMARY ENERGY RENEWABLE GENERATION (PER): 53 -
LOCATION: Meeniyan, Vic
NCC CLIMATE ZONE: 6 – Mild temperate
NATHERS CLIMATE ZONE: 22
YEAR OF COMPLETION: 2023
TREATED FLOOR AREA (PHPP sqm): 218.3
PROJECT TYPE: New Build
SECTOR: Single Dwelling
CONSTRUCTION TYPE: Timber Frame
CERTIFICATION LEVEL/ ENERGY STANDARD: Passivhaus Plus
THIRD PARTY CERTIFICATIONS: Nathers -
MHRV SYSTEM: Zehnder Q350
DOMESTIC HOT WATER SYSTEM: Reclaim Energy REHP-CO2-315SST split heat pump with 315L storage tank
EXTERIOR WALL TYPE, U-VALUE: 140x45 timber framing @600cc with R4.0 glasswool insulation, 0.27
FLOOR SLAB TYPE, U-VALUE: Waffle pod slab over insulated with 50 mm XPS insulation, 0.577
ROOF INSULATION TYPE, MANUFACTURER: R6.0 glasswool insulation
ROOF CONSTRUCTION: Prefabricated timber roof trusses
ROOF ENVELOPE U-VALUE: 0.17
GLAZING TYPE, MANUFACTURER, U W-VALUE, G-VALUE, U G-VALUE: Triple glazing with low-e coatings, PressGlass, 1.01, 0.51, 0.58
EXTERNAL DOOR TYPE, MANUFACTURER, U D-VALUE: Aluclad timber, 1
WINDOW FRAME MANUFACTURER AND TYPE, U-VALUE (Uw, INSTALLED): Logikhaus LogikWin 68, 1.01 -
NUMBER OF MODULES: 24
HEIGHT, WIDTH OF ONE MODULE (m, m): 1754 x 1096
EFFICIENCY (%): 98
-
The home is oriented to the north to maximise passive solar gain and fitted with rooftop solar panels, enabling it to achieve surplus energy generation and receive credit from the energy supplier.
-

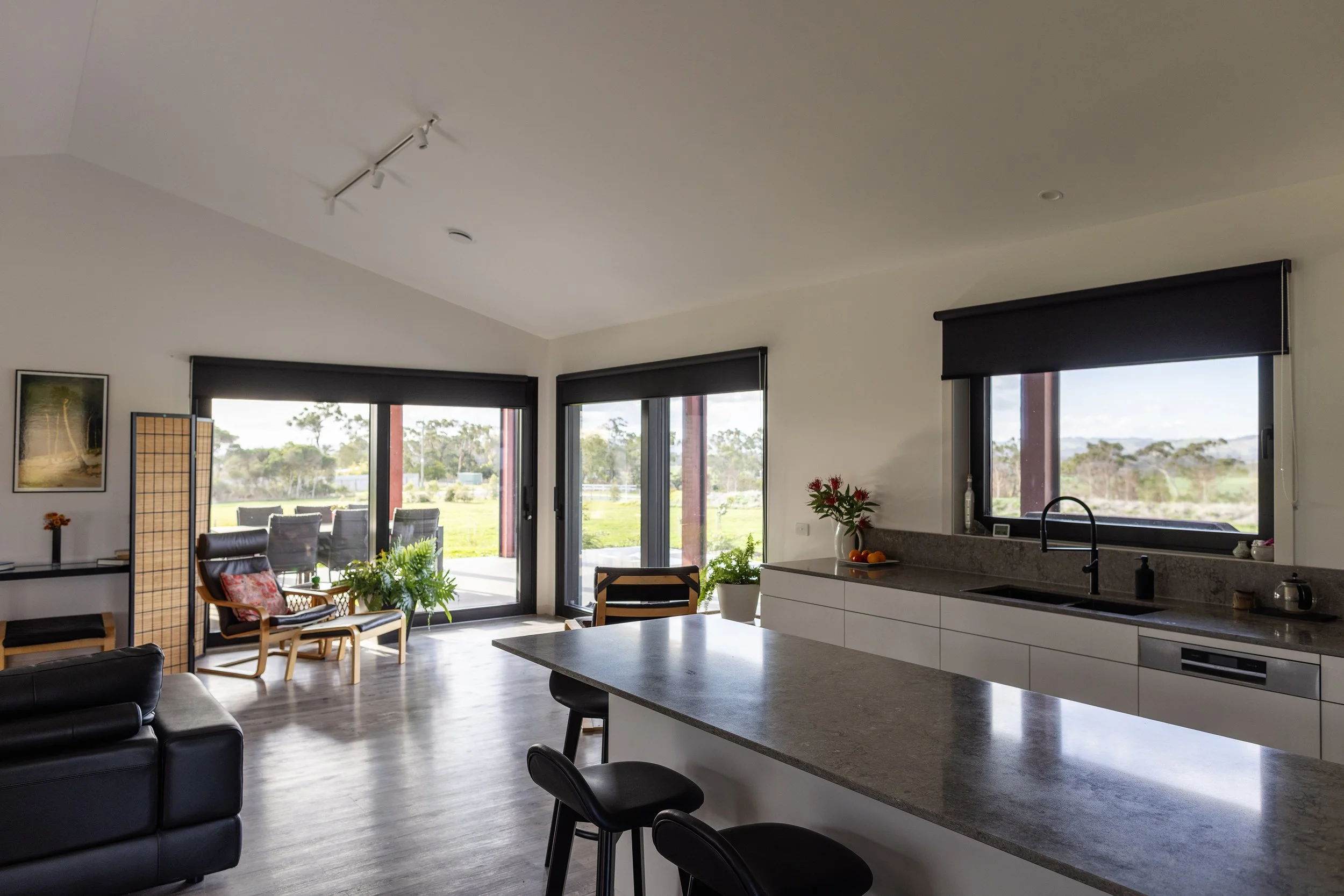

The team set out to adapt the original design to align with the Passivhaus Standard while keeping within the client’s budget. With a few smart adjustments—such as incorporating scissor trusses—the project was able to achieve this balance successfully.
Project Members
PASSIVHAUS CERTIFIER: Detail Green
PASSIVHAUS CONSULTANT/ DESIGNER: Passive Analytics
ARCHITECT/ BUILDING DESIGNER: Environmental Homes & Landscapes
CONTRACTOR/BUILDER/PROJECT MANAGER: North South Homes
STRUCTURAL ENGINEER: Deery Consulting
MECHANICAL ENGINEER/BLOWER DOOR TESTER: Passivetech
ENVIRONMENTAL CONSULTANT: EcoClimate
WINDOW SUPPLIER: Logikhaus
HRV SUPPLIER: Fantech
AIRTIGHTNESS MEMBRANE SUPPLIER: Performance Membranes
INSULATION SUPPLIER: Gippsland Insulation, Tradelink
ROOFING SUPPLIER: HJB Plumbing
PHOTOGRAPHER: Susan Carmody Photography
OTHER NOTABLE SUPPLIERS: Joinery - Chenery, Plumbing - HJB Plumbing, Plaster - GR & T Plasterers
