Robertson Passivhaus
Residential: Single Dwelling
Passivhaus Classic Certification
Robertson, NSW, 2022

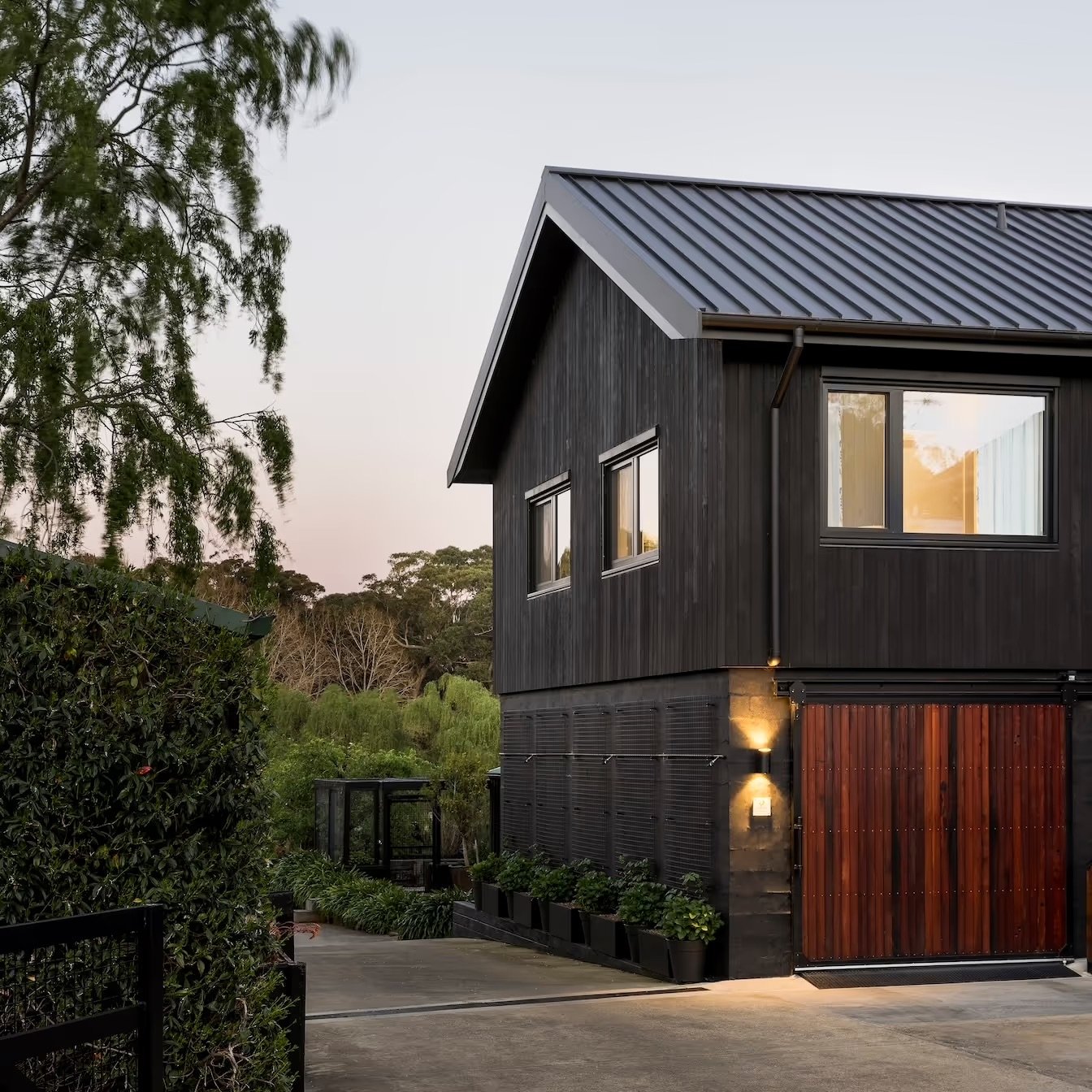

Sitting on the concrete slab of the former stables adjacent to the original homestead, the ground floor is literally a concrete bunker that delivers a fire-proof, smoke-proof shelter for equipment and livestock if bushfires threaten. It’s a spacious garage and storage room in more ordinary times.

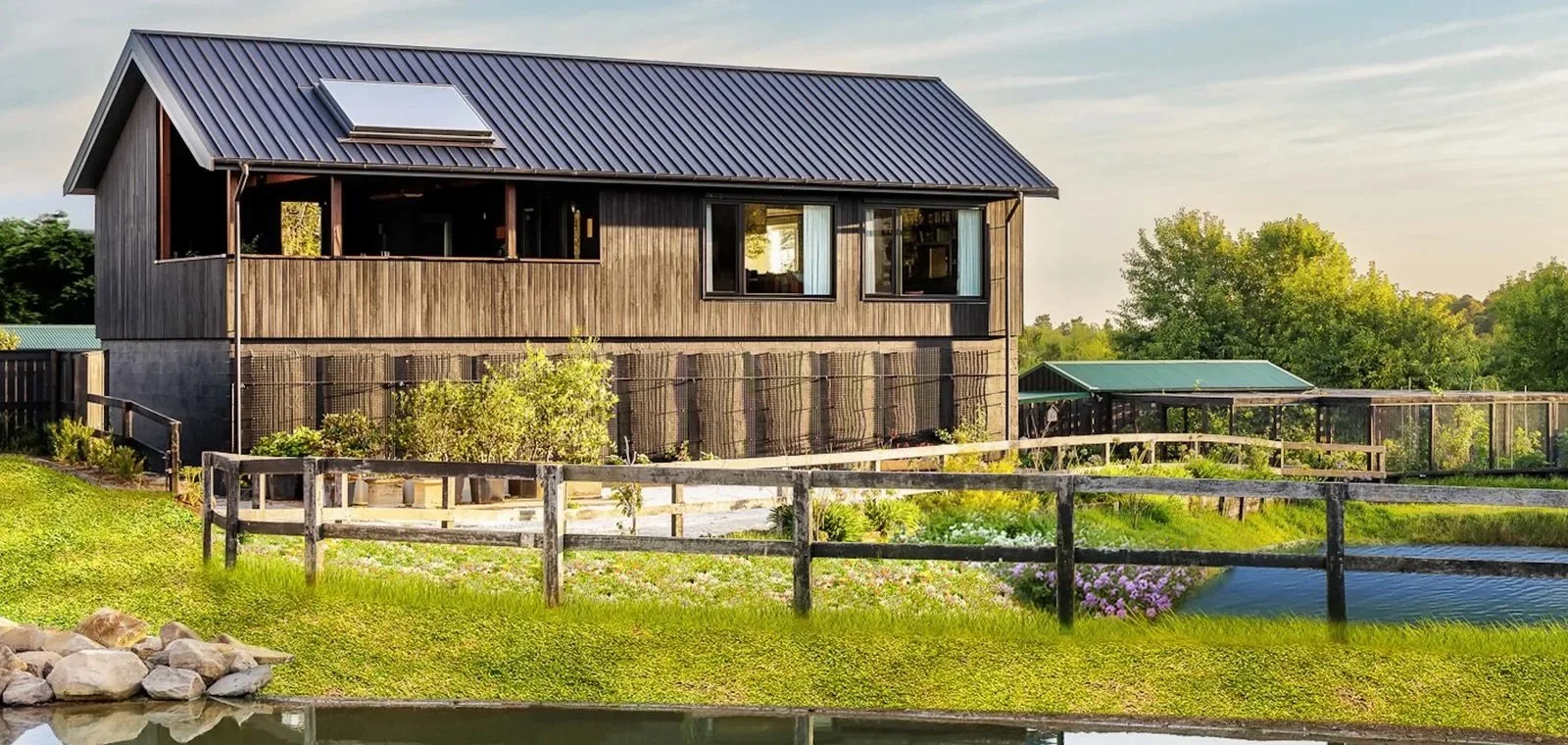

Atop the bunker is a lightweight timber-framed two bedroom home clad in shou sugi ban native hardwood. The dark colour, the vertical cladding, and the house orientation all contrast dramatically with the traditional white weatherboards of the original home. However, in a nice unifying touch, the new building’s roofline reflects that of the homestead. Its elevated position delivers sweeping views over the rural landscape.
-
AIRTIGHTNESS n50 ACH@50pascals: 0.20
HEATING DEMAND (kWh/m².yr): 12
COOLING DEMAND (kWh/m².yr): 5
PRIMARY ENERGY RENEWABLE DEMAND (PER): 52 -
LOCATION: Robertson, NSW
NCC CLIMATE ZONE: 6
NATHERS CLIMATE ZONE: 24
YEAR OF COMPLETION: 2022
TREATED FLOOR AREA (PHPP sqm): 120
PROJECT TYPE: New build
RESIDENTIAL: Single Dwelling
CONSTRUCTION TYPE: Timber Frame, Suspended concrete slab
CERTIFICATION LEVEL/ ENERGY STANDARD: Passivhaus Classic -
MHRV SYSTEM: Zehnder ComfoAir Standard 375
DOMESTIC HOT WATER SYSTEM: Sanden Eco Plus 315L
EXTERIOR WALL TYPE, U-VALUE: Insulated 140mm timber framed wall with 45mm insulated service cavity, 0.238
FLOOR SLAB TYPE, U-VALUE: 160mm suspended concrete slab with 100mm PIR rigid insulation below, 0.256
ROOF INSULATION TYPE, MANUFACTURER: Bradford gold
ROOF CONSTRUCTION: Timber framing
ROOF ENVELOPE U-VALUE: 0.137
GLAZING TYPE, MANUFACTURER, U W-VALUE, G-VALUE, U G-VALUE: Triple, Logikhaus, 1.1 , 0.53, 0.58
EXTERNAL DOOR TYPE, MANUFACTURER: Glazed door, Logikhaus
WINDOW MANUFACTURER, U W-VALUE: Logikhaus, 1.1
-
Although grid-connected, this property is at the end of the transmission line and energy supply is not robust. A new dwelling could not be energy-hungry. These two factors powerfully shaped the form this building took and how it functions.
Building to the Passivhaus Standard was an excellent suggestion by the project team.The designers were already experienced with this framework that creates radically energy-efficient, healthy buildings. The benefits dovetailed exactly with the brief, creating a building that can hunker down and passively weather storms of whichever sort arise with minimal energy requirements.
The project is built to a mid-level bushfire protection level, significantly more than the site’s BAL12.5 rating indicates is necessary. Remotely controlled external blinds protect timber/aluminium windows from excess heat. These keep the house cool when summer temperatures climb, all while retaining a clear view to outside.
-
Thermal breaks in the concrete floor and in structural steel beams have been cleverly detailed and constructed, separating the conditioned and unconditioned living spaces upstairs and preventing uncontrolled heat loss.
The lift from the garage opens onto the deeply sheltered deck, providing undercover access without compromising the airtight building envelope.
The careful craftsmanship from the construction team is evidenced by an outstanding airtightness test result of 0.2ACH.
A ventilation system ensures excellent indoor air quality year round, no matter the temperature outside.
A higher-grade HEPA filter can be easily installed when needed to protect against particulate pollution and the smell of smoke.
The home is the first certified Passivhaus in the Southern Highlands.
Project Members
PASSIVHAUS CERTIFIER: Detail Green
PASSIVHAUS CONSULTANT/ DESIGNER: Envirotecture
ARCHITECT/ BUILDING DESIGNER: Envirotecture
BUILDER: Jarrod Olsen & Co
STRUCTURAL ENGINEER: JN Consulting Engineers
MECHANICAL ENGINEER: Envirotecture
WINDOW SUPPLIER: Logikhaus
HRV SUPPLIER: Fantech
AIRTIGHTNESS MEMBRANE SUPPLIER: ProClima
BLOWER DOOR TESTER: Blower Door Services
PHOTOGRAPHER: Evan Maclean
